Topics covered in this Lesson:

Introduction to Materials and Rendering



For the next few lessons, you should switch to the 3D modeling workspace. Look for the menu in the top left of the AutoCAD screen. Older versions may have this in the bottom right. You should also have your Ribbon in view if you don't already as there are many commands that are easier to access this way instead of via the command line. A video of this tutorial is at the bottom of the page.



Change Workspace in AutoCAD 2012


One of the more interesting aspects of working in 3-D is that you can visualize what your design will look like. You have so far used the hide and shade commands to give you some idea towards how the final piece will look. The next step is to learn about the RENDER command. This command is the most powerful one for viewing your 3D objects. Using render, you are able to add realistic lighting and materials to get the most realistic view of what you're designing.

You can render objects that don't have materials applied to them, but it won't look as realistic as if you have material added.

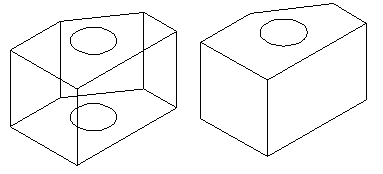

The first two blocks shown here are examples of the usual wire-frame view before and after the HIDE command.

Before and after the HIDE command



These two blocks show how the render command can show the object two ways. The block on the left was rendered without a material applied, while the one on the right has a white ash material applied.



Shaded and Rendered views



Applying the materials is a relatively easy process, getting them to look exactly the way you want them is skill in itself. Once the materials are added, getting the lights and shadows to look realistic is another task that many people prefer to complete in a program other than AutoCAD, although AutoCAD is getting better at this with each release.



Follow these steps to get an basic, accurate rendering:

    Draw the object using solids or surfaces

    Apply the materials

    Render the scene

Once your objects are drawn, you have to decide which materials you want to use. AutoCAD comes with a basic materials library that you can use to apply to your objects. This may have been an option when you installed the program, and this tutorial will assume that you have them. If you don't have them, jump ahead to the tutorial about creating materials and come back - I'll wait.



Later lessons will teach you how to create new materials and map them to objects. This lesson is designed to allow you to quickly and easily apply materials to your objects.



Start by drawing a basic cube 20x20x20 - this will be your object for testing materials. Go to the Ribbon and find the Visualize Ribbon. Change the Visual Style to Realistic and then click on the Material Browser button.



Render Ribbon AutoCAD 2012



Clicking on the Materials Browser (or typing RMAT) will open the Material Browser Palette (shown below).
Now that you have your object (the cube) and a list of materials, you're ready to go.



Materials Palette for AutoCAD 2016

Materials Palette for AutoCAD 2012



The easiest way to apply a material to an object is to click on the material you want to use and then drag it over to the object.



As you have set your visual style to "Realistic", you'll see the material cover the object like a skin. It might not be the right scale or exactly what you envisioned, but the material is applied to object now - and that's the easy part. Zoom in on your object to see the material a little closer if you need to.



BASIC RENDERING

There are few ways to render, and for this exercise I will suggest this method. Look at the Render Ribbon again and under the "Materials Browser" button, you'll see this:



Render settings in AutoCAD 2016



There are a few settings you can select before rendering, but for now, just set it to "Medium" and "Render in Window". This will create a decent rendering in a separate window from your main drawing space. Now type RENDER <enter> to start the rendering.





This window allows you to preview the rendering, zoom in and out, print and save the rendered image to a file. Click on the "Save" button to save your first rendering.



If you're going to be trying a lot of renderings, you should open the render settings palette by clicking on the small arrow shown below.





As you can see there are a few options in this palette, but for now I want to look at the two that are boxed in red. These settings allow you to crop to an area and then render the scene in your viewport. We'll look at more options in tutorial 3-17.



One advantage of rendering a separate window is that you can continue working on your drawing while the render completes in the background. Depending upon how powerful your computer is, the rendering could slow everything down regardless.

Review

This has just been an introduction to the rendering process. As you can see adding materials isn't needed unless you plan on rendering the scene. Using just the example above, you can get a nice looking presentation done using only a few simple steps. Next you would need to add lights, shadows and possibly custom materials. For me, this where AutoCAD gets fun and makes up for the steep learning curve when starting out.



Extra Practice: Add materials to any of the objects you created in Lessons 3-6, 3-7, 3-7a.



Video: Adding Materials and Basic Rendering









Share



Take the Lesson 3-9 Quiz

Reload Quiz

For Further Thought:

I remember learning these techniques back in 1995 and staying long after class to keep working on them. It was fascinating to me. Think about the ultimate goal of this process. You create a 3D model, add a realistic material to it and then create an image that you can show someone. This person doesn't need the ability to read a blueprint or an orthographic projection drawing - they just look at the rendered model.
A majority of images in the Ikea furniture catalog are 3D renderings. It's easier for them to render the image (as they already have the drawing) than to hire photographers and deal with digital photos. That's the power of 3D.
